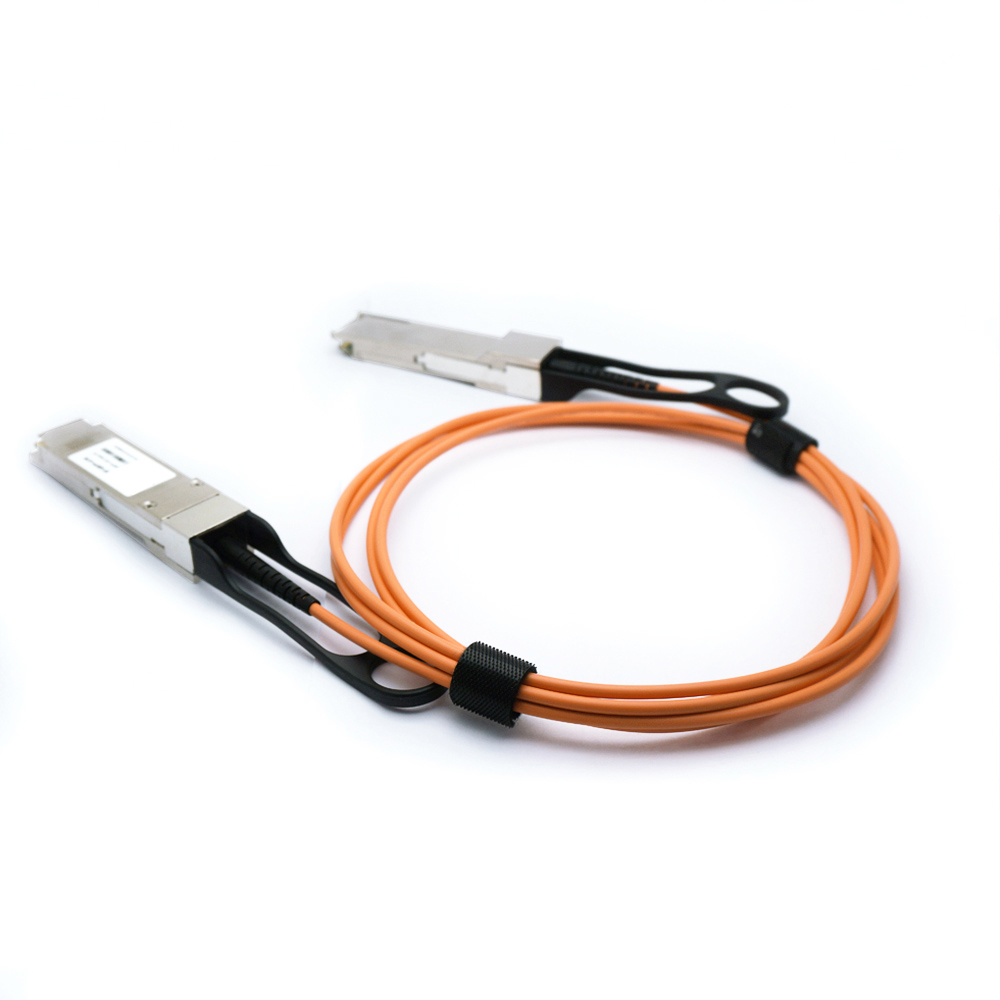

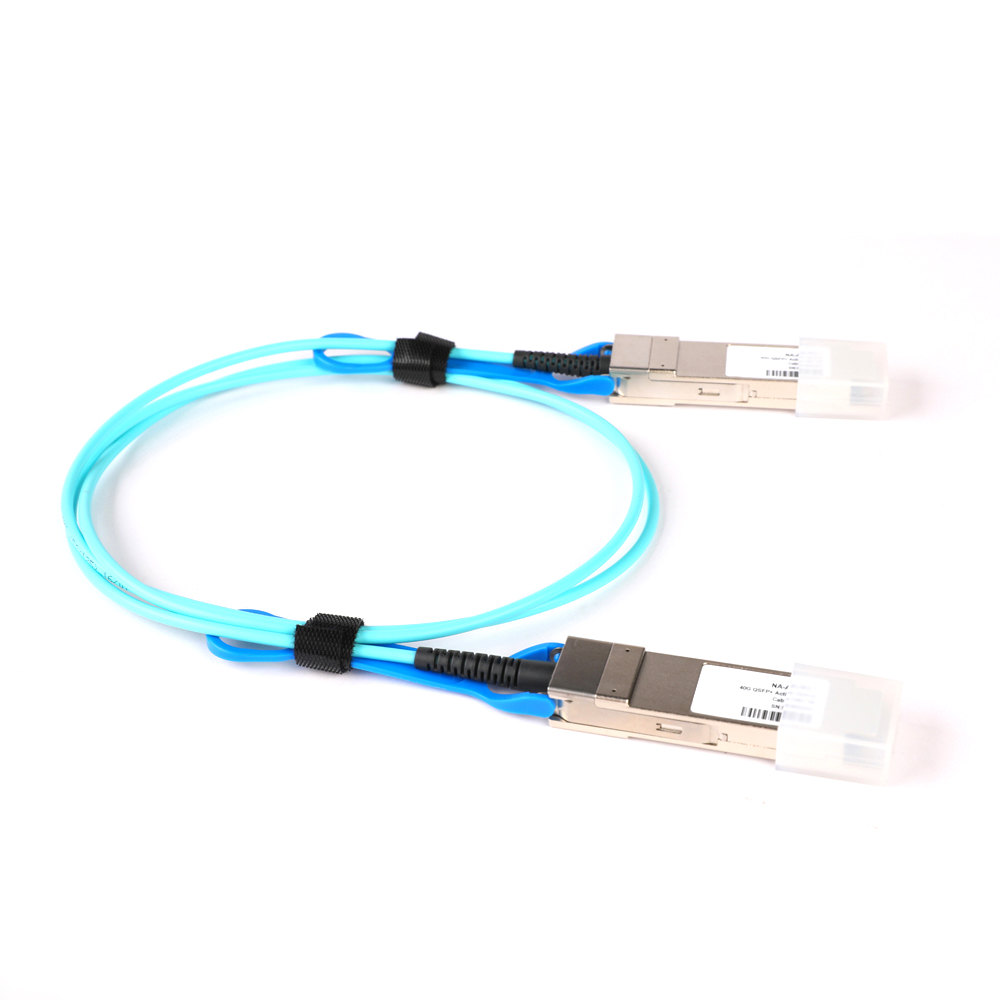

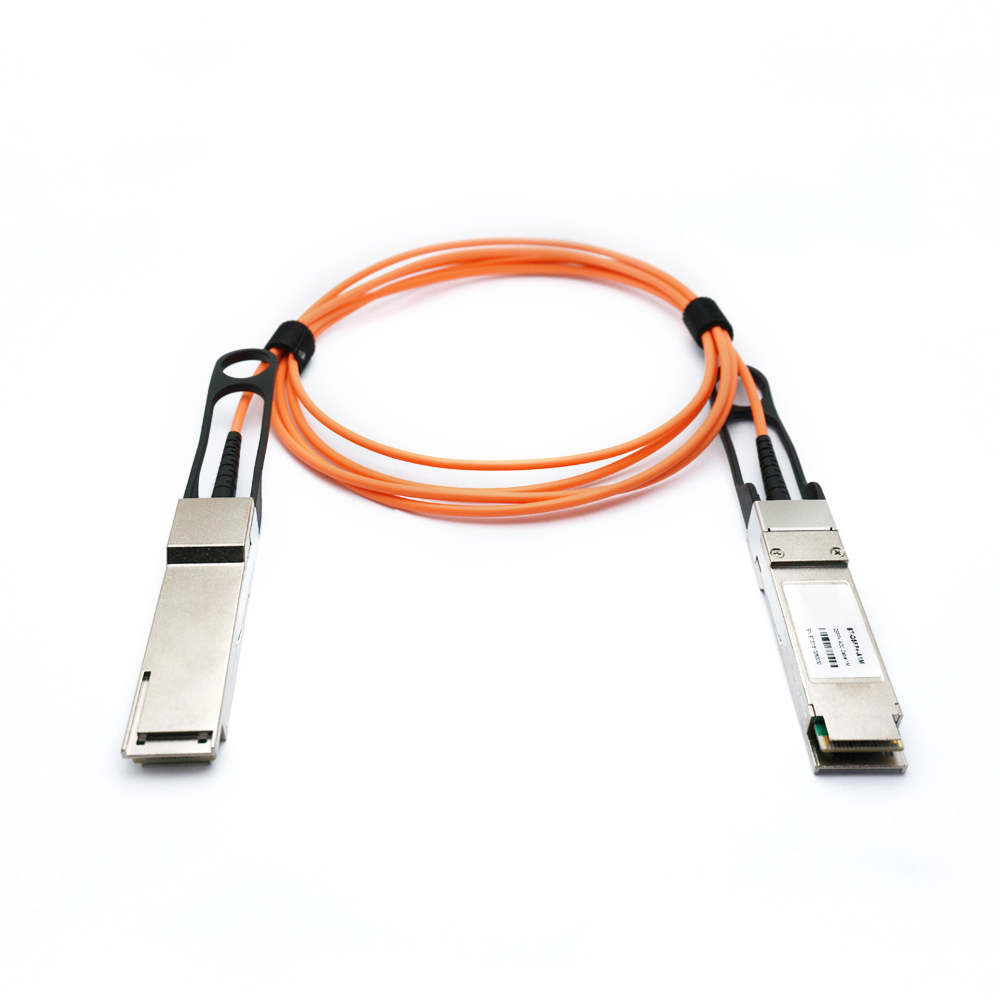

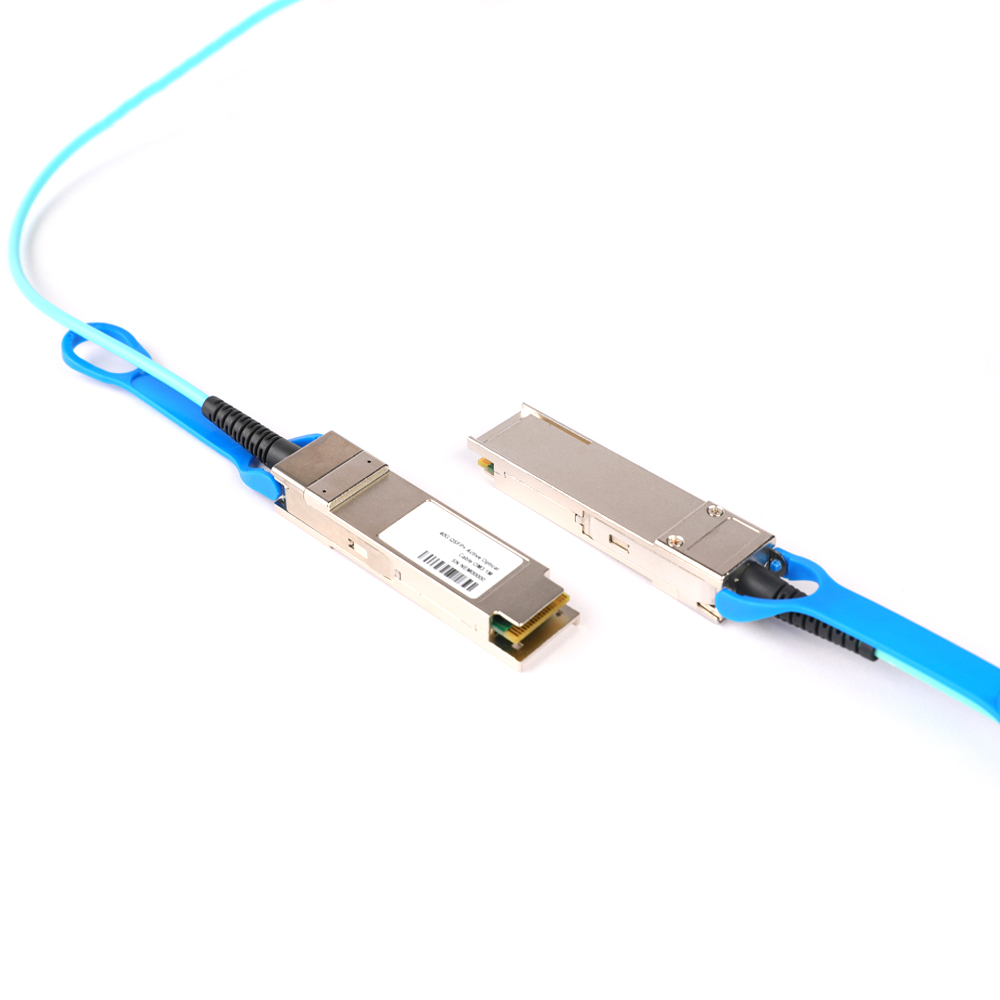

40Gbps QSFP+ Active Optical Cable
Description
The active optical cables (AOC) that allows bi-directional 40Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand QDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
Features
> Quad Small Form-factor Pluggable (QSFP)
> 40GBASE-SR4 compliant
> QDR, DDR, SDR (Infiniband) compliant
> Bi-directional parallel link
> 10.3125Gb/s per lane, x4 channels
> Up to 100m
> Low profile connectors
> Low power consumption
> Bundle multi-mode fiber array
> 850nm VCSEL four array
> PIN diode four array
> Hot-Pluggable
> I2C management interface
> From 0 to 70 degree case temperature
> 3.3V power supply voltage
> Electrical 38-pin connector
Standard
> Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4
> Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
> Compliant with QSFP MSA(SFF-8436)
> RoHS Compliant:lead-free
Applications
> Low-latency and high-speed interconnections for high performance computing(HPC)
> 40G Ethernet SR4
> Other high-throughput data transmission network
> Storage area Network(SAN)
Performance Specifications
Absolute Maximum Ratings
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.
Table.1 Absolute maximum ratings
Parameter | Conditions | Min | Max | Units |
Power supply voltage at 3.3V | -0.5 | 3.75 | V | |
Voltage on I/O pads | -0.5 | VDD+0.5 | V | |
Differential Input Swing | 1.5 | Vpp | ||
Storage temperature | Non-condensing | -40 | 85 | Celsius |
Powered case temperature range | Non-condensing | -5 | 70 | Celsius |
Relative Humidity | 5 | 85 | % | |
Static discharge voltage onhigh speed pins | Human body model | 500 | V | |
Static discharge voltage on other pins | Human body model | 2000 | V | |
Air discharge to QSFP case | EN61000-4-2 Criterion B Test | 15 | kV | |
Contact discharge to QSFP case | EN61000-4-2 Criterion B Test | 8 | kV |
Recommended Operating Conditions
Table.2 Recommended Operating Conditions
Parameter | Conditions | Min | Typ. | Max | Units |
Data rate per lane | 8B/10BCoding, 64B/66B Coding | 1 | 10.3125 | 10.5 | Gbps |
3.3V Supply Voltage | 3.13 | 3.3 | 3.47 | V | |
Power supply noise including ripples | 1kHz to frequency of operation mersured at VCC_HOST | 50 | mVpp | ||
Case temperature | 0 | 35 | 70 | Celsius |
Transmitter Specification (Electrical)
Table.3 Transmitter Specification (Electrical)
Parameter | Test Point | Min | Max. | Units | Conditions |
Single ended input voltage tolerance | TP1a | -0.3 | 4 | V | Referred to TP1 signal common(Internally AC coupled) |
Differential input voltage swing | TP1a | 200 | 1600 | mVpp | Peak to peak differential |
AC common-mode input voltage tolerance | TP1a | 15 | - | mV | RMS |
Differential input return loss | TP1 | See IEEE 802.3ba 86A.4.1.1 | - | dB | 10MHz to 11.1GHz |
Differential to common-mode input return loss | TP1 | 10 | - | dB | 10MHz to 11.1GHz |
J2 jitter tolerance | TP1a | 0.17 | - | UI | |
J9 jitter tolerance | TP1a | 0.29 | - | UI | |
Data Dependent Pulse Width Shrinkage (DDPWS) tolerance | TP1a | 0.07 | - | UI | |
Eye mask coordinates: X1, X2 Y1, Y2 | TP1a | Specification values 0.11, 0.31 95, 350 | UI mV | Hit ratio = 5 x 10-5 see Figure. 3(a) |
a) Transmitter electrical input eye mask (b) Receiver electrical output eye mask

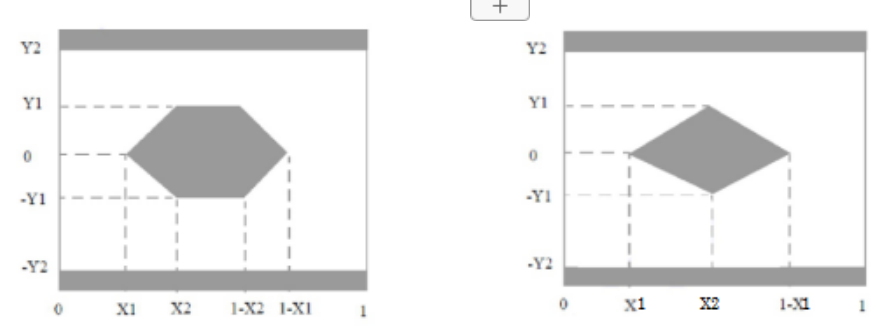

Figure 1. Eye Mask
Receiver Specification(Electrical)
Table.4 Receiver Specification (Electrical)
Parameter | Test Point | Min | Typ | Max. | Units | Conditions | |
Single ended input voltage tolerance | TP4 | -0.3 | - | 4 | V | Referred to signal common (Internally AC coupled) | |
AC common-mode input voltage | TP4 | - | - | 7.5 | mV | RMS | |
Differential Output swing (p-p) | TP4 | - | 320 (range 0) | - | mV | See details in the section “Memory Map”, page03, byte 238-239. | |
- | 420 （range 1） | - | mV | Default setting | |||
- | 740 （range2） | - | mV | ||||
- | - | 50 | mV | Squelched state | |||
Termination mismatch at 1MHz | TP4 | - | - | 5 | % | ||
Differential output return loss | TP4 | See IEEE 802.3ba 86A.4.2.1 | - | dB | 10MHz to 11.1GHz | ||
Common-mode output return Loss | TP4 | See IEEE 802.3ba 86A.4.2.2 | - | - | dB | 10MHz to 11.1GHz | |
Output transition time, 20% to 80% | TP4 | 28 | - | - | ps | ||
J2 jitter output | TP4 | - | - | 0.42 | UI | ||
J9 jitter output | TP4 | - | - | 0.65 | UI | ||
Eye mask coordinates: X1, X2 YI,Y2 | TP4 | Specification values 0.29, 0.5 150, 425 | UI mV | Hit ratio = 5 x 10-5 see Figure. 3(b) | |||

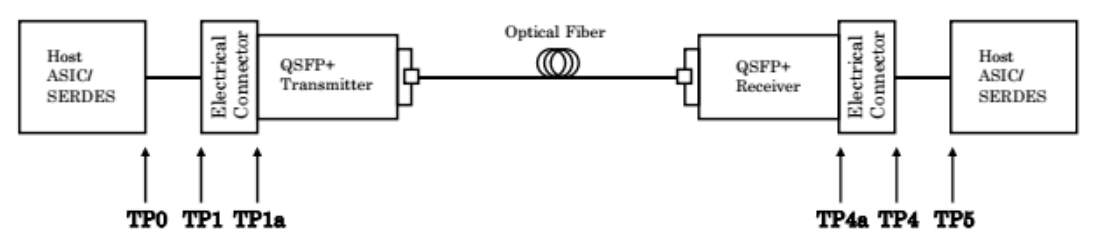

Test Point Definition
Figure 2. Test Point
Low Speed Electrical Specification
Table.5 Low Speed Electrical Specification
Parameter | Symbol | Min | Max. | Unit | Notes |
Reset,ModSell,LPMode | VIL | -0.3 | 0.8 | V | Lower BER performance at 28Gbps |
VIH | 2 | VCC+0.3 | V | ||
ModPraL | Internally terminated to GND | ||||
IntL | VOL | 0 | 0.4 | V | IOL=2mA |
VOH | VCC-0.5 | VCC+0.3 | V | ||
SCL,SDA | VOL | 0 | 0.4 | V | IOL(max)=3mA |
VOH | VCC-0.5 | VCC+0.3 | V | ||
VIL | -0.3 | VCC*0.3 | V | ||
VIH | VCC*0.7 | VCC+0.5 | V | ||
Capacitance for SCL and SDA I/O Pin | Ci | 14 | pF | ||
Total bus capacitice load for SCL and SDA | Cb | 100 | pF | ||
200 | pF | 1.6kohm Pullup resistor,max |
Recommended QSFP Host Board Power Supply Filtering
Figure 3: Recommended QSFP Host Board Power Supply Filtering
Pin Definitions
Table.6 Pin Definitions
Logic | Symbol | Signal | Description | |
1 | GND | Signal Ground | Ground | |
2 | CML-I | Tx2n | Tx2n | Transmitter Inverted Date Input.AC coupled |
3 | CML-I | Tx2p | Tx2p | Transmitter Non_Inverted Date Input.AC coupled |
4 | GND | Signal Ground | Ground | |
5 | CML-I | Tx4n | Tx4n | Transmitter Inverted Date Input.AC coupled |
6 | CML-I | Tx4p | Tx4p | Transmitter Non_Inverted Date Input.AC coupled |
7 | GND | Signal Ground | Ground | |
8 | LVTTL-I | ModSelL | ModSelL | Module Select pin.Selected when held low by the host. |
9 | LVTTL-I | ResetL | LPMode_Reset | Module Reset.A"low" pulse induces a reset on the module. |
10 | Vcc Rx | Vcc Rx | +3.3V Power Supply Receiver | |
11 | LVCMOS-I/O | SCL | SCL | 2-wire serial interface |
12 | LVCMOS-I/O | SDA | SDA | |
13 | GND | Signal Ground | Ground | |
14 | CML-O | Rx3p | Rx3p | Receiver Non_Inverted Date Input.AC coupled |
15 | CML-O | Rx3n | Rx3n | Receiver Inverted Date Input.AC coupled |
16 | GND | Signal Ground | Ground | |
17 | CML-O | Rx1p | Rx1p | Receiver Non_Inverted Date Input.AC coupled |
18 | CML-O | Rx1n | Rx1n | Receiver Inverted Date Input.AC coupled |
19 | GND | Signal Ground | Ground | |
20 | GND | Signal Ground | Ground | |
21 | CML-O | Rx2n | Rx2n | Receiver Inverted Date Input.AC coupled |
22 | CML-O | Rx2p | Rx2p | Receiver Non_Inverted Date Input.AC coupled |
23 | GND | Signal Ground | Ground | |
24 | CML-O | Rx4n | Rx4n | Receiver Inverted Date Input.AC coupled |
25 | CML-O | Rx4p | Rx4p | Receiver Non_Inverted Date Input.AC coupled |
26 | GND | Signal Ground | Ground | |
27 | LVTTL-O | ModPrsL | ModPrsL | Module Present pin.Internally grounded inside the module. |
28 | LVTTL-O | IntL | IntL | Interrupt by the QSFP module."Low"indicates an Alarm/Warning. |
29 | Vcc Tx | Vcc Tx | +3.3V Power Supply Transmitter | |
30 | Vccl | Vccl | +3.3V Power Supply | |
31 | LVTTL-I | LPMode | LPMode | Low Power Mode |
32 | GND | Signal Ground | Ground | |
33 | CML-I | Tx3p | Tx3p | Transmitter Non_Inverted Date Input.AC coupled |
34 | CML-I | Tx3n | Tx3n | Transmitter Inverted Date Input.AC coupled |
35 | GND | Signal Ground | Ground | |
36 | CML-I | Tx1p | Tx1p | Transmitter Non_Inverted Date Input.AC coupled |
37 | CML-I | Tx1n | Tx1n | Transmitter Inverted Date Input.AC coupled |
38 | GND | Signal Ground | Ground | |
Housing | Chassis Ground |
Mechanical Specifications
Table.7 Mechanical Specifications
Parameter | Min | Max. | Unit | Notes |
Cable bend radius(Installation) | 30 | mm | ||
Cable bend radius(Operating) | 60 | |||
QSFP module insertion | 40 | N | ||
QSFP module extraction | 30 | N | ||
Retention Load | 100 | N | No damage to module below 100N | |
Insertion/removal cycles | 200 | Cycles | Number of cycles for an individual module |

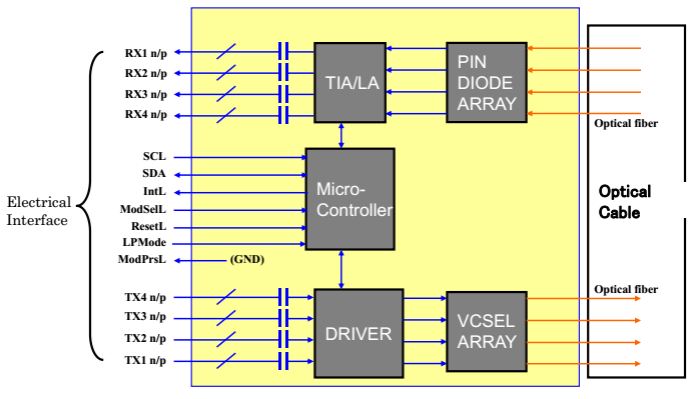

Functional Block Diagram of the QSFP Module
Figure 6:Functional Block Diagram of the QSFP Module

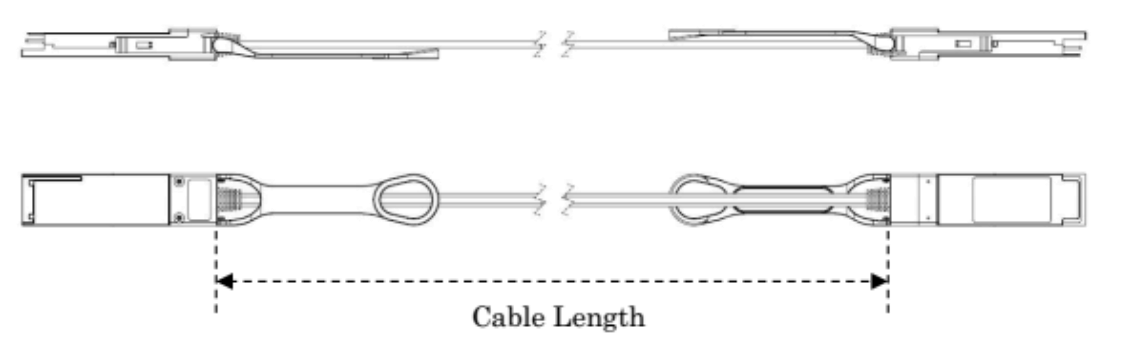

Overview of Cable Assembly
Figure 7:Overview of Cable Assembly
Order Information
P/N | Description |
QSFP+-AxxM | 40G QSFP+ to QSFP+ AOC Cable OM2/OM3/OM4, xx=0~100meter |
