FEATURES
lRoHS-6 compliant
lHigh speed / high density: support up to 4X10 Gb/s bi-directional operation
lCompliant to industrial standard SFF-8436 QSFP+ standard
lLow power consumption : less than 1.5W
lDistance up to 100 meters by OM3 fiber and 150M by OM4 fibe
lReliable VCSEL and PIN photonic devices
lI2C standard management interface
lExcellent high speed signal integrity
APPLICATIONS
l40G Ethernet (40GBASE-SR4)
lProprietary high speed, high density data transmission.
lSwitch and router high speed backplane interconnect
lHigh performance computing, server and data storage.

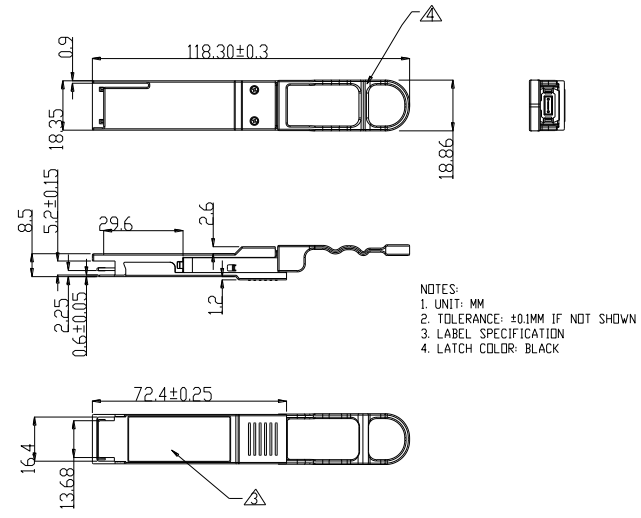

Mechanical Dimensions
General Operating Characteristics
(V CC3=3.135V~3.465V, TC= 0 o to 70 o, Per End)
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
Operating Case Temperature | TC | 0 | 70 | °C | [1] | |
Ambient Humidity | HA | 5 | 85 | % | [2] | |
+3.3V Supply Voltage | VCC3 | 3.135 | 3.465 | V | ||
+3.3V Supply Current | IVCC3 | 400 | mA | |||
Total Power Dissipation | PD | 1.5 | W | |||
Bit rate | B | 10.3125 | Gb/s | [3] | ||
Input Control Voltage- High | ViH | 2.0 | Vcc+0.3 | V | [4] | |
Input Control Voltage - Low | ViL | -0.3 | 0.8 | V | [4] | |
Digital Output Voltage- High | VoH | 2.0 | Vcc+0.3 | [5] | ||
Digital Output Voltage- Low | VoL | 0 | 0.8 | [5] | ||
Clock Rate-I2C | 400 | kHz | [6] |
Notes:
1. See ordering information. The position for measuring case temperature is shown as following
2. Non-condensing
3. Tested with PRBS 231-1, BER 1X10-12
4. For all control input pins: LPMode, Reset and ModSelL
5. For all status output pins: ModPrsL , IntL
6. For management interface.
