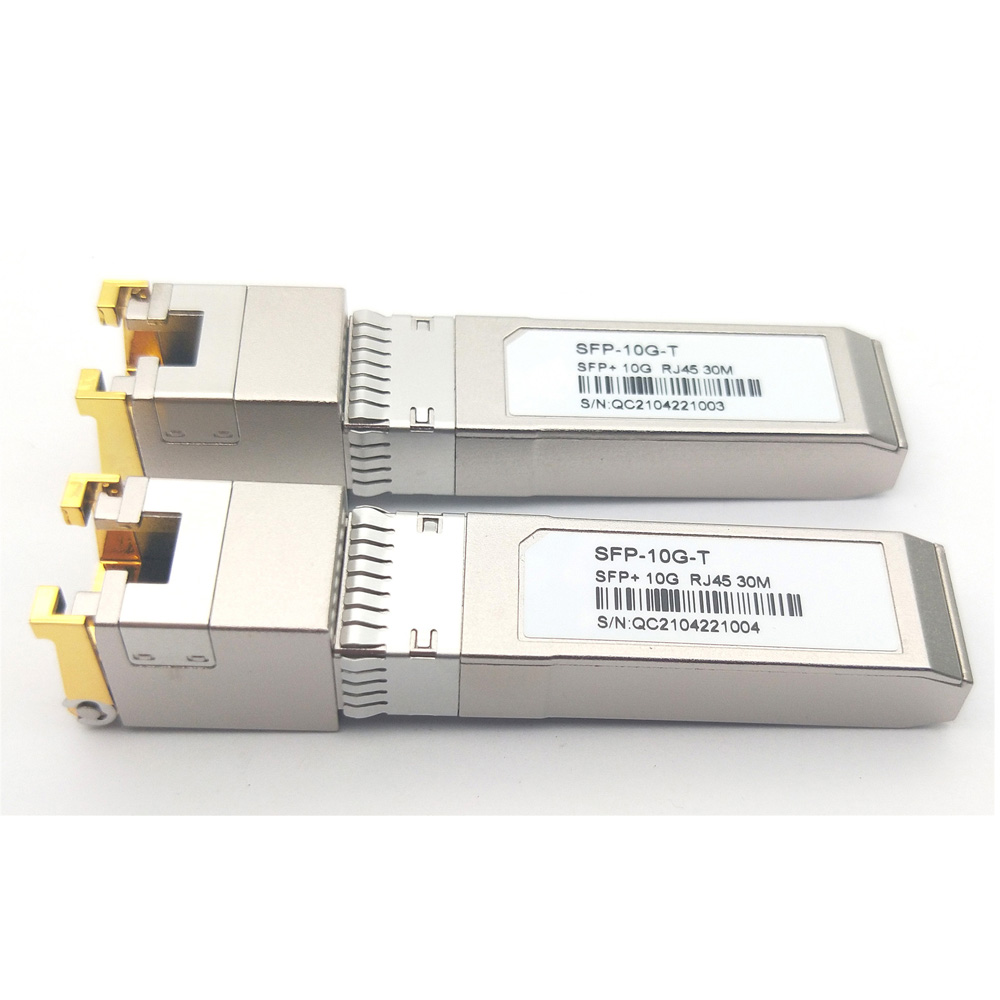

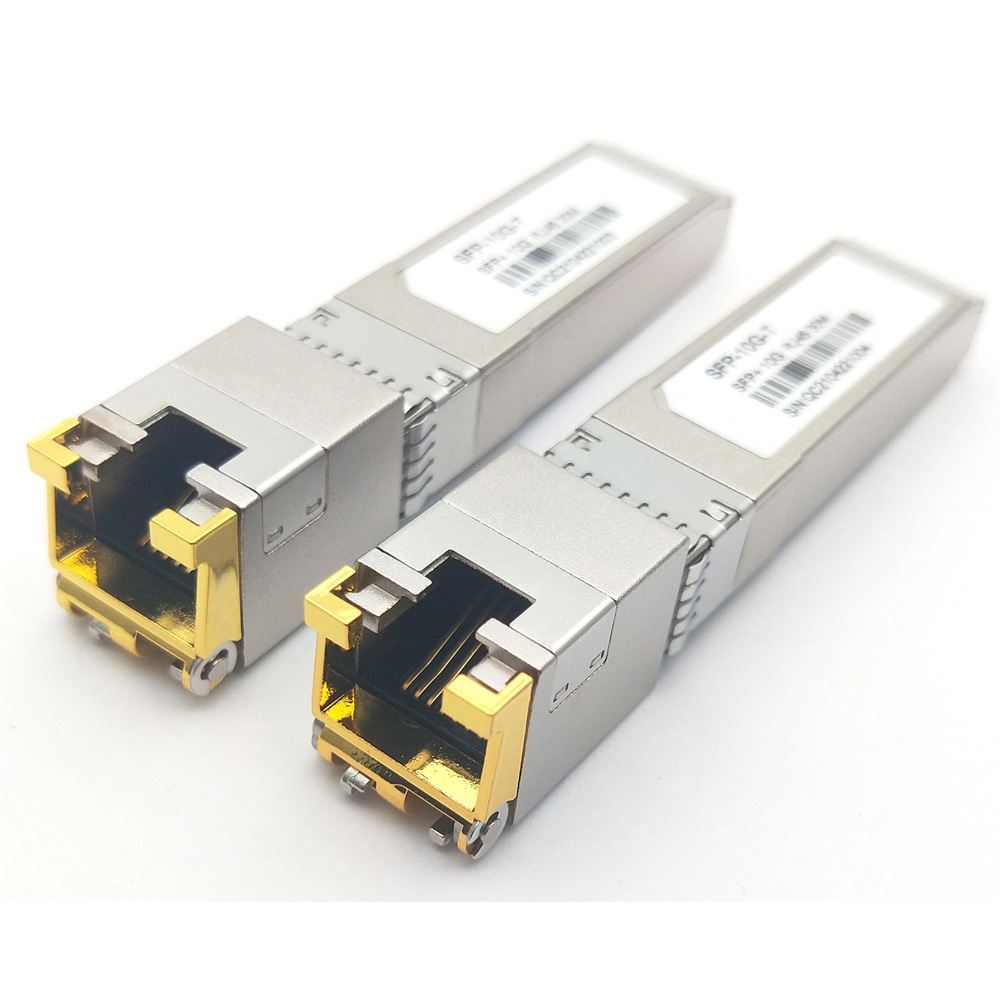

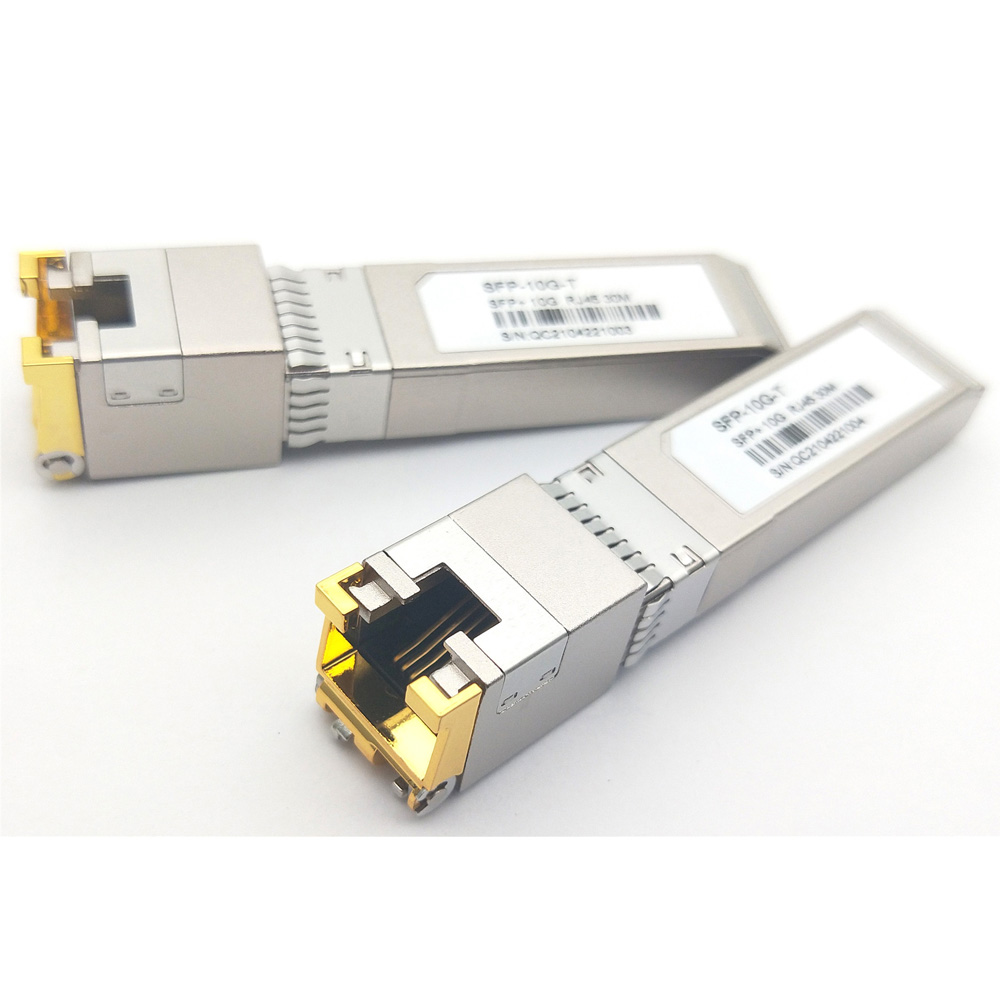

10G電口模塊特點
l市場大多數數據中心內設備間的鏈路距離在10 m到80 m之間，使用10GBASE-T SFP+電口光模塊能彌補SFP+高速線纜傳輸距離的不足。
l10GBASE-T SFP+電口模塊采用RJ45接口，和超六類或七類網線一起使用，而銅纜布線的成本要比光纜布線的低。
l在成本上，10GBASE-T SFP+電口模塊可以直接用在現有的銅纜布線系統中實現10G傳輸，而使用SFP+光模塊則需要用光纜進行布線，這會增加部署成本。如果想要在現有銅纜布線系統中使用SFP+光模塊，則需要增加以太網交換機或光電轉換器等設備
PRODUCT FEATURES
l Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
l Hot-pluggable SFP footprint
l Compact RJ-45 connector assembly
l RoHS compliant and lead-free
l Single +3.3V power supply
l 10 Gigabit Ethernet over Cat 6a cable
lAmbient Operating temperature: 0°C to +60°C
PRODUCT DESCRIPTION
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
+3.3V Volt Electrical Power Interface
The SFP+-10GBASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.
+3.3 Volt Electrical Power Interface | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
Supply Current | Is | 700 | 900 | mA | 3.0W max power over full range of voltage and temperature. See caution note below | |
Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
Maximum Voltage | Vmax | 4 | V | |||
Surge Current | Isurge | TBD | mA | Hot plug above steady state current. See caution note below | ||
Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

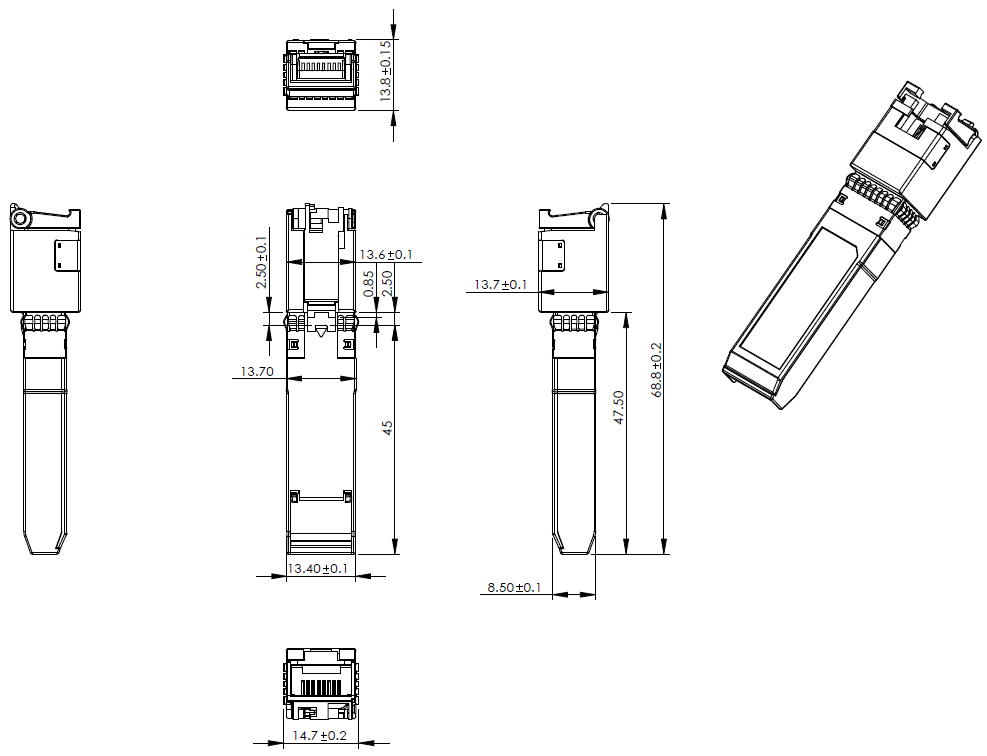

Outline drawing (mm)
Low-Speed Signals
MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals (see section VII, "Serial Communication Protocol"). Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc
Low-Speed Signals, Electronic Characteristics | |||||
Parameter | Symbol | Min | Max | unit | Notes/Conditions |
SFP Output LOW | VOL | 0 | 0.5 | V
| 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
SFP Output HIGH | VOH | host_Vcc -0.5 | host_Vcc + 0.3 | V
| 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector
|
SFP Input HIGH | VIH | 2 | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
High-Speed Electrical Interface
All high-speed signals are AC-coupled internally.
High-Speed Electrical Interface, Transmission Line-SFP | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
Line Frequency | fL | 125 | MHz | 5-level encoding, per IEEE 802.3 | ||
Tx Output Impedance | Zout,TX | 100 | Ohm | Differential, for all frequencies between 1MHz and 125MHz | ||
Rx Input Impedance | Zin,RX | 100 | Ohm | Differential, for all frequencies between 1MHz and 125MHz | ||
High-Speed Electrical Interface, Host-SFP | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
Single ended data input swing | Vinsing | 250 | 1200 | mV
| Single ended | |
Single ended data output swing | Voutsing | 350 | 800 | mV | Single ended | |
Rise/Fall Time | Tr,Tf | 175 | psec | 20%-80% | ||
Tx Input Impedance | Zin | 50 | Ohm | Single ended | ||
Rx Output Impedance | Zout | 50 | Ohm | Single ended | ||
